August 2001

Sonar is a Java program that pings large numbers of IP addresses (a bit like nmap - to see whether there is a computer responding at that address) and records the results in a text file.

SonarNavigator is a Java3D application that imports data files containing IP addresses from Sonar and displays them in 3D using a simple transformation to turn the A.B.C.D standard IPv4 address notation into 3 dimensional coordinates.

You can navigate through the 'IP space' a bit like a flight simulator. If you imagine a 3D lattice structure, the intersections represent possible addresses, which are either occupied by an object if the IP address returns a ping packet, or are blank if there was no response.

Of course, it was inspired by William Gibson's cyberpunk novels when Case jacks into the matrix...

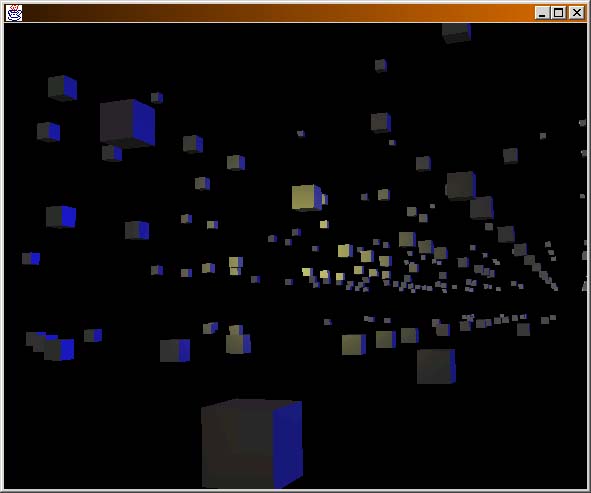

Fig. 1 - BT Internet address space, headlights full on.

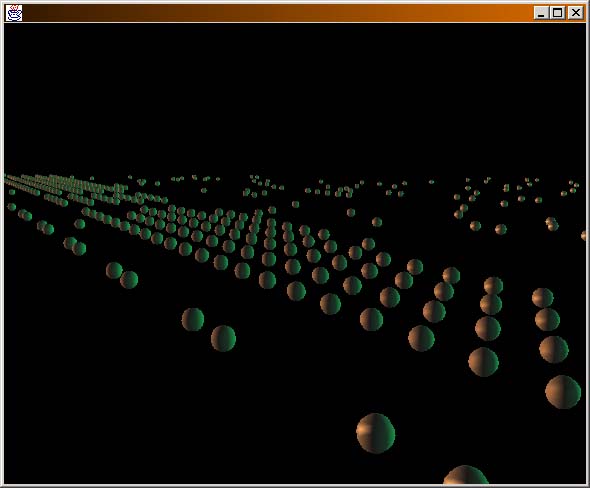

Fig. 2 - I was exploring part of the AOL address space when I came across this dense IP address block (dialups?).
